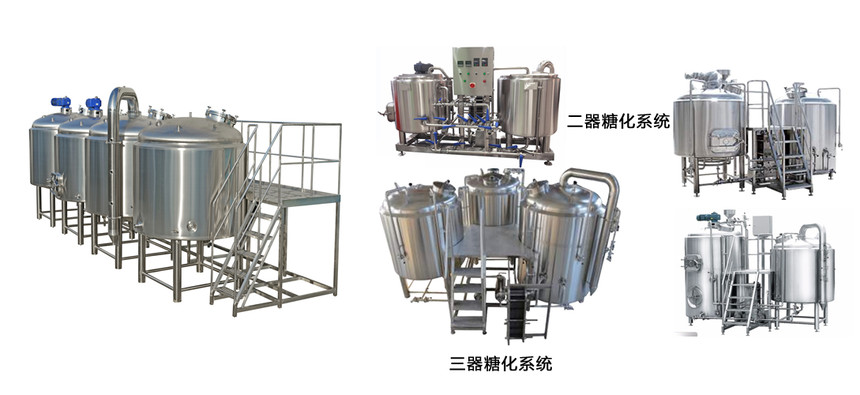

本设备在吸收欧美成熟、先进的啤酒酿造工艺和生产技术的基础上融入了自己的领先技术。啤酒三器糖化系统完全可以满足啤酒从业者和酿造师对不同工艺、不同口味、不同产量的需求。该糖化设备采用全不锈钢制造，外观可制铜或金色表面。组合方式有二器、三器、四器式糖化系统、五器等多种组合方式。啤酒三器式糖化系统加热方式有蒸汽加热、天然气（火）加热和电加热等多种加热方式。


2、技术参数:

啤酒三器式糖化系统全面不锈钢制造，卫生级100%的TIG焊接和抛光，严格的质量控制、外部和内部光洁度仔细查验.设备使用压力是 0.2MPa,腾威用0.6Mpa来测试所有罐的夹套. 中间介质是高性能聚氨脂,过滤槽配有栅格滤板、耕排糟系统、筛板底部CIP、谷物排糟门、差速液位计。内筒厚度3-4mm, 2B抛光; 外包皮是2mm，亚光处理; 保温介质是高性能聚氨酯,厚度80mm;冷却夹套1.5-2mm.
-设备配置(7BBL/10BBL/15BBL/20BBL/30BBL或定制):

美国三器式糖化系统
USA 3 Vessels Brewhouse (NO.CMB-2.5S)

一,组合形式

糖化过滤罐Mash Lauter tun+热水罐Hot water tank,煮沸旋沉罐Kettle whirlpool tun

二,产品规格Capacity
5/7/10/15/20/30 BBL，or customer mode

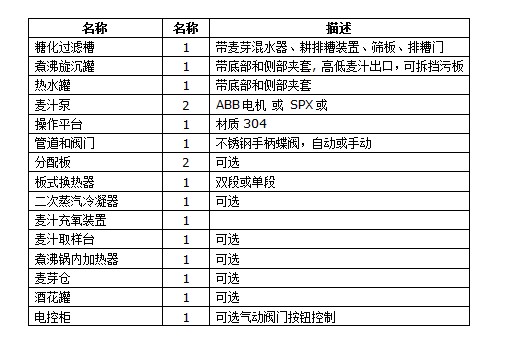

三,产品配置Product configuration

1,糖化过滤罐Mash lauter tun:

麦芽混水器Grist Hydrator/耕刀搅拌器Racking machine ratary tillage cutter and stir/侧糟门slide out manhole/上人孔Top manhole

2,煮沸旋沉罐Kettle whirlpool tun

底部夹套Bottom jacket/侧面夹套Side jacket/人孔Manhole/操作平台Work platform/缓冲罐Buffer Tank/泵（变频调速）Piping/Pump(VVVF)/一段或二段式板式换热器One or two line heat exchanger/充氧装置Venturi oxygen mixture/控制箱Control box/温度控制箱Temperature Controller/手动阀门Manual valve

3,热水罐Hot water tank
底部夹套Bottom jacket，侧面夹套 Side jacket，人孔Manhole

4,可选项Option
2次蒸汽冷凝系统Steam condensate system，麦汁取样台Wort sampling station

5,加热方式Heating
蒸汽Steam，直火加热Fire，电加热Electricity

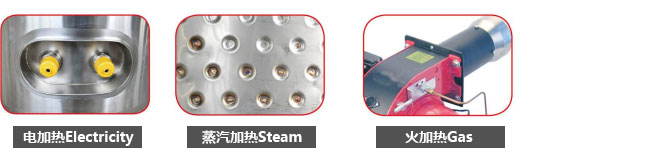

啤酒三器式糖化系统加热方式:
l ● 蒸汽加热: 蜂窝夹套
l ● 电加热: 大功率电热棒
l ● 天然气（火）加热:天然气燃烧器直接加热;

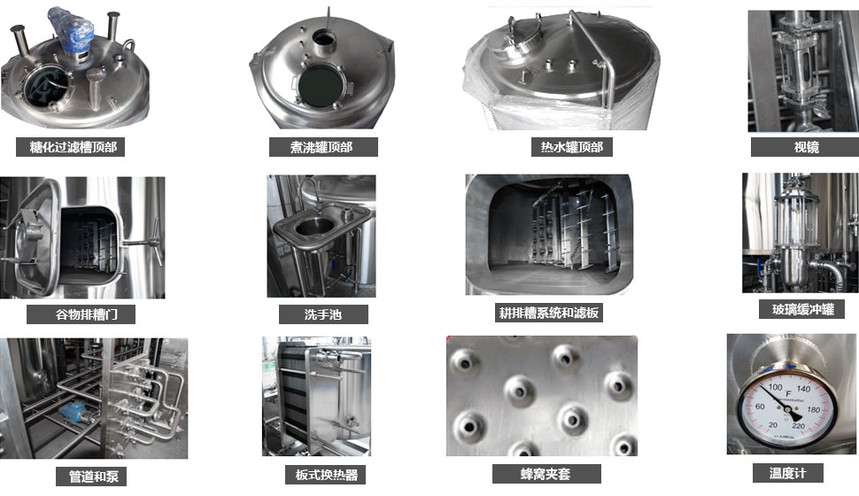

3、啤酒糖化系统产品细节图:

4、生产周期:

啤酒三器式糖化系统收到30%预付款之后的40天内发货.

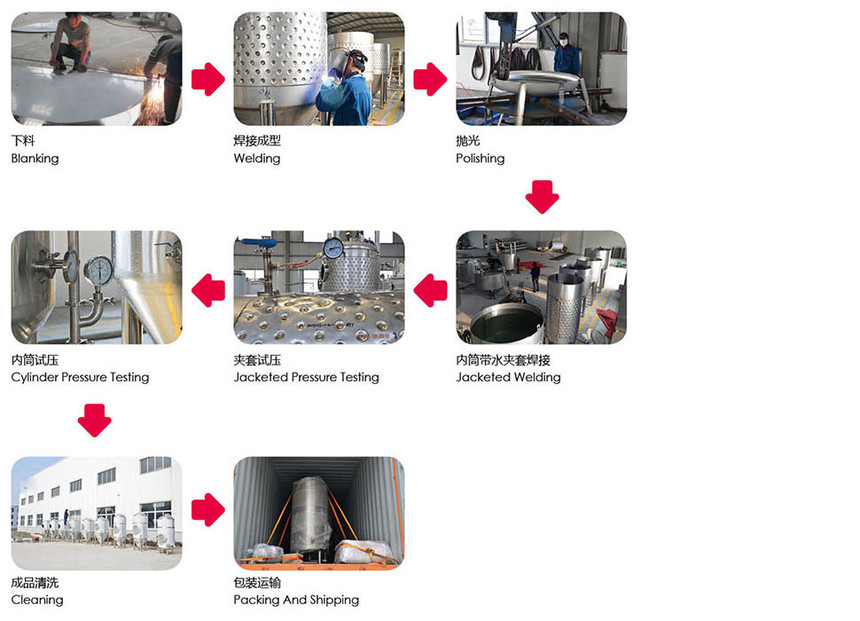

5、生产过程:

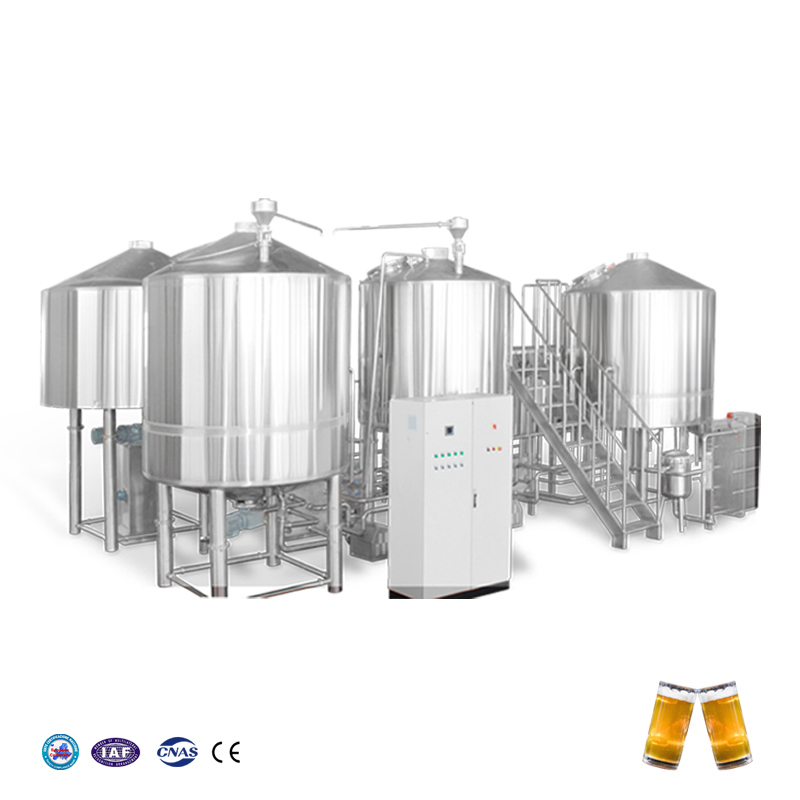

美国三器糖化系统

啤酒酿造设备

美国三器糖化系统
